seeedstudio・エジソンインテル?diyのメーカーのためのオープンソースのbooole xadow

商品説明

インテルブルキットのための最初の着用できるキットですか？エジソンは< br />何それは< br />インテルエジソンのためのxadow着用できるキットインテルエジソンと装着型デバイスを作るために完全なキットです。それは、拡張ボードと一緒に8つの小さいと強力なxadowモジュールでは、千

More information in English:

The First Wearable Kit for Intel? Edison
What is it

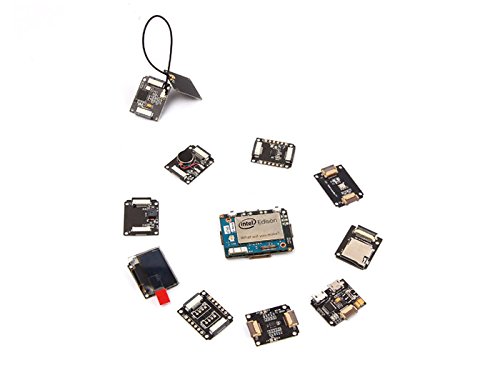

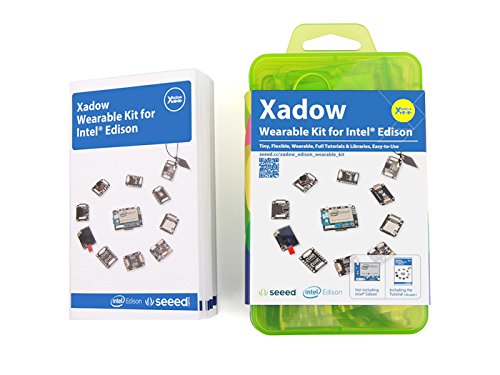

Xadow Wearable Kit for Intel Edison is a perfect kit to make wearable devices with Intel Edison. It includes an expansion board together with eight tiny and powerful Xadow modules, covering sensors, actuators, displays and communication parts. The connectivity through FFC makes it quite flexible for wearable projects. Based on the kit, you could build your own pedometer, thermometer and NFC enabled devices!

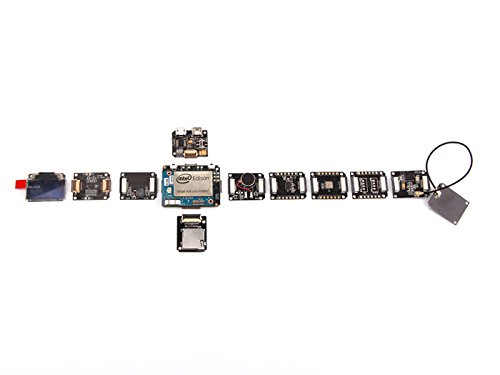

What's inside?



Project 1: Cool Light

What We’ve Get Here
In this project, we use an NFC module and a Q Touch one to control the RGB LED strip. There are 3 buttons of the Q Touch module. To make NFC module work, NFC tag must be wrote record message in. About how to write tags, please refer to Tips.

The Circuit

Result
Put one of the NFC tags onto the antenna and you’ll see LED shine. There’re three modes ? single color loop, flow color and rainbow cycles, reflecting to the three different tags, respectively. Besides, if touch one of the buttons on Q Touch Sensor, the LED strip will show a single color say red, green or blue.
Project 2: Glowing Thermometer

What We’ve Get Here
We utilize a barometer module here to monitor the temperature, air pressure and altitude. The index will be shown on the OLED. To start with, let’s set up a secure temperature between 20℃ and 30℃. When the temperature goes out of the secure range, the vibrator will shake and the OLED will display a warning picture. Now open the demo Glowing Thermometer compile and upload the sketch.
