seeedstudioラズベリーパイのためのarduinoアダプタ自作メーカーのオープンソースbooole

商品説明

arduinoの大規模な生態系は、ラズベリーパイgpioインタフェースarduinoピン配置に適応するための方法があるならば、広大なアルドゥイーノシールドとハードウェア/ソフトウェア資源と一緒に使用することができる。これは、arpi600だけのために意図します。< br />

More information in English:

Arduino is a massive ecosystem, if there's a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.
What's more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.
Supported Pi:
Raspberry Pi 1 Model A+
Raspberry Pi 1 Model B+
Raspberry Pi 2 Model B
Features:
Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
XBee connector for connecting various XBee modules

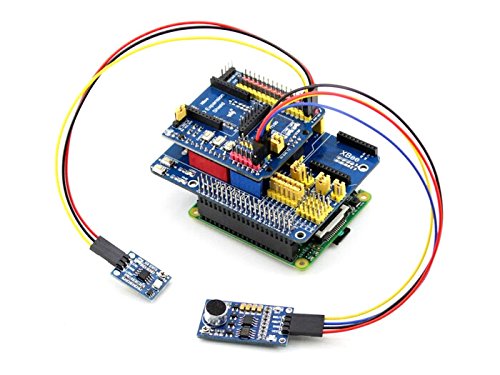

Sensor interface for connecting various sensors
Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
Onboard RTC

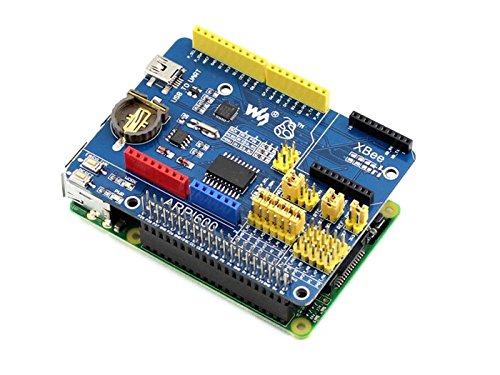

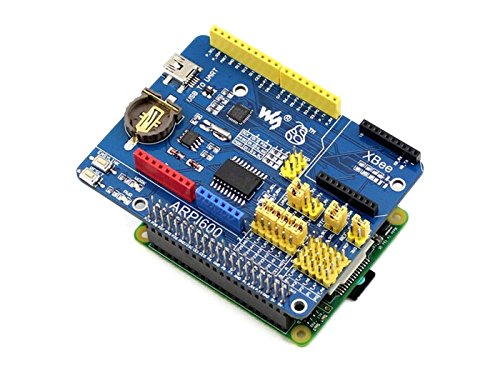

Specification:
1.Arduino connector : for connecting Arduino shields
1.2.ICSP interface : Arduino ICSP
2.XBee connector : for connecting XBee communication modules
3.Sensor interface : for connecting sensors
4.Raspberry Pi connector : for connecting Raspberry Pi
5.USB TO UART
6.TLC1543 : AD converter
7.PCF8563 : RTC
8.CP2102
9.32.768KHz crystal : for RTC
10.Power indicator
11.XBee state LED
12.XBee and Arduino interface RESET button
13.XBee EASYLINK button
14.RTC battery holder : for CR1220 button battery
15.TLC1543 reference voltage configuration jumper
16.RTC jumper
17.UART jumper
when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee seri
