seeedstudio xadowエジソン・キットインテルに基づくxadowエジソン・キット自作メーカーのオープンソースbooole

商品説明

？エジソンは参入障壁を誰でも、プロトタイピングとiotとウェアラブルコンピューティングの製品を製造するために設計されている。高性能と低消費電力を特徴として、あなたのプロジェクト

More information in English:

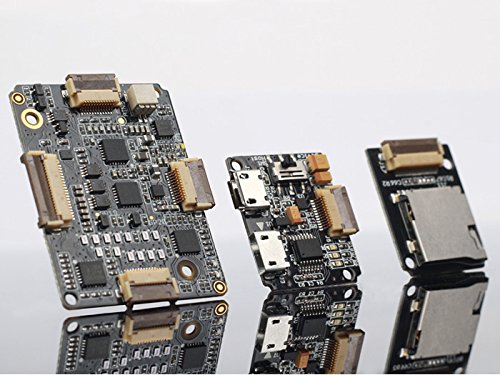

The Xadow - Edison Kit is based on the Intel? Edison which is designed to lower the barriers to entry for anyone prototyping and producing IoT and wearable computing products. It features high performance and low power consumption, which makes your project small and portable, especially suitable for wearable projects. Xadow - Edison Kit includes a Xadow - Edison main board which contains two Xadow-compatible interfaces, one SD interface, one Programmer interface and one Battery interface, a Xadow - Edison Programmer, Xadow - Edison SD. With Xadow - Edison you will be able to use many Xadow modules via standard Xadow interface.
Features:

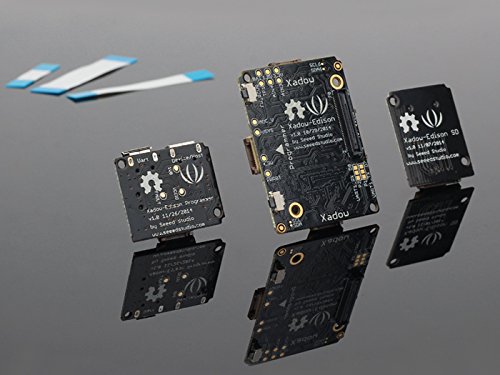

Part List
Xadow - Edison ? ? ? ? ? x1
Xadow - Edison Programmer x1
Xadow - Edison SD ? ? ? x1
FPC Cable;12P-0.5-50mm ? ?x1
FPC Cable;20P-0.5-50mm ? ?x1
Design for Intel? Edison.
USB power supply(4.75~5.25V).
Xadow-compatible interfaces.
SD card connector.
USB to device UART bridge with USB micro Type-B connector.
USB OTG with USB Micro Type-AB connector.
Battery charger.
Power/sleep/Firmware recovery button input
Specification:
USB Power supply: 4.75V ~ 5.25V
2 standard Xadow interface
1 SD card connector.
1 USB micro Type-B connector
1 USB Micro Type-AB connector
1 Battery interface
1 button for Power/sleep; 1 button for Firmware recovery
Dimensions 30.0 × 40.0 × 7.0 mm
Operating temperature 32 to 104°F (0 to 40°C)
