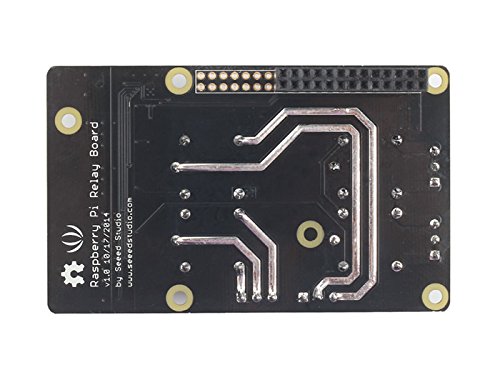

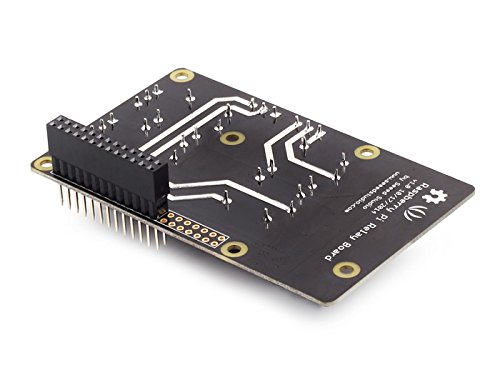

seeedstudioラズベリーパイリレーボード自作メーカーv 1 .のオープンソースbooole

商品説明

リレーシールドの4つの高品質のリレーを利用しないインタフェースとnc高電流の負荷を制御を提供します。それが装置を制御していないiicバスによって直接制御されることができのいい解決であることを意味します。標準化されたシールドfo

More information in English:

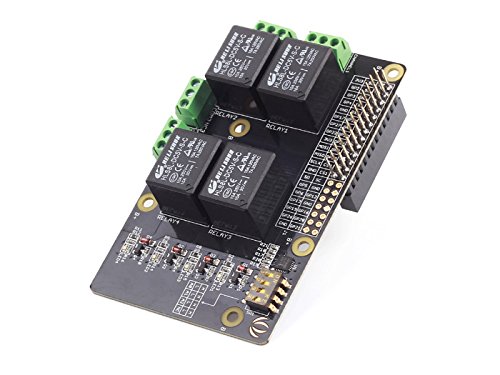

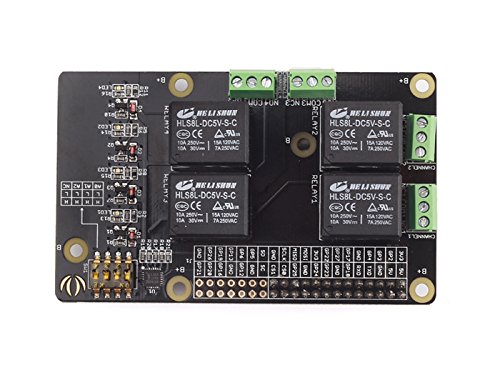

The Relay Shield utilizes four high quality relays and provides NO/NC interfaces that control the load of high current. Which means it could be a nice solution for controlling devices that couldn't be directly controlled by IIC bus. Standardized shield form factor enables smoothly connection with the Raspberry Pi . The shield also has four dynamic indicators show the on/off state of each relay.
Features:
Raspberry Pi compatible
Interface:IIC , Three hardware SW1 (1, 2, 3) select the fixed I2C-bus address
Relay screw terminals
Standardized shield shape and design
LED working status indicators for each relay
COM, NO (Normally Open), and NC (Normally Closed) relay pins for each relay
High quality relays
Working status indicators for each relay
Specification:
Compatible:Raspberry Pi ; Other main board via jumpers;
Power supply:4.75~5.5V ;
Max Switching Voltage:30VDC/250VAC;
Max Switching Current:15A ;
Frequency:1Hz;
Dimensions:91.20 * 56.15*32mm;
Documents:
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
