seeedstudio－xadow-qタッチセンサの高感度免疫at42qt1070 diyのメーカーは、オープンソースのbooole

商品説明

atmel at42qt1070。それに基づいています。その爆発は、at42qt1070を調節するスペクトラム拡散のファッションのために外部雑音の影響を抑制するために重く、

More information in English:

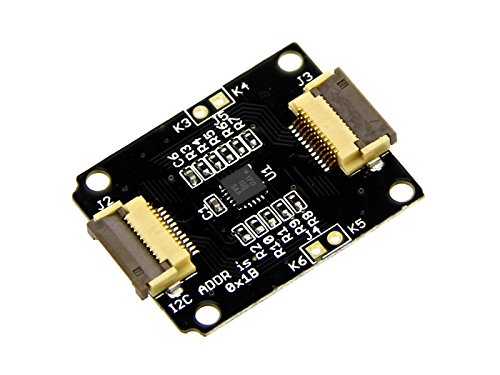

The Q Touch Sensor is a high sensitivity and high noise immunity touch input device.It is based on Atmel AT42QT1070. The AT42QT1070 modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise, and to suppress RF emissions. The QT1070 uses a dual-pulse method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin.

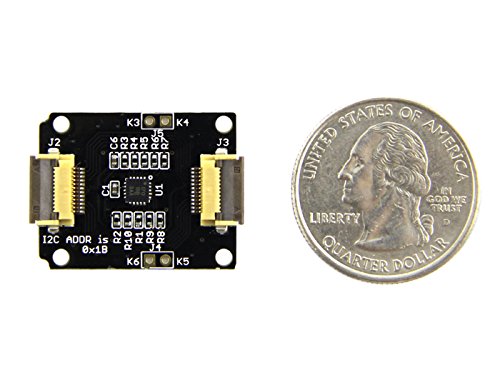

Specification
Operating Voltage: 3 ~ 5.5V
Operating Current @3.3V: 1mA

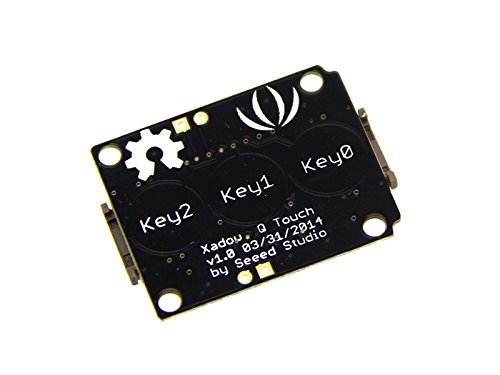

Touch Keys: 7 Keys ; key0 ,key1 ,key2 are on the Xadow PCB bottom side
Communicating Protocol: I2C
I2C Address: 0x1B

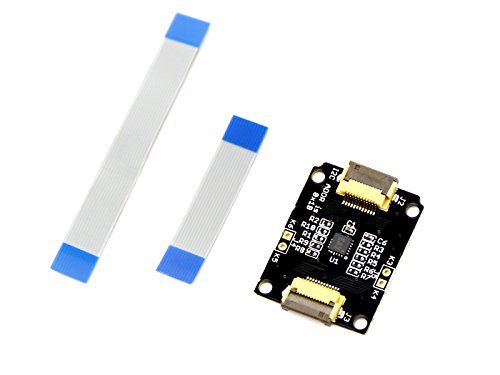

Resource
Q Touch Library
Schematic pdf
Eagle file
AT42QT107 datasheet
How to detect finger touch
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to ourforum.
