商品説明

テスト新しいハードウェアをはんだ付けすることなく容易に脱走拡張ボードを使用しています。ちょうどブレッドボード上の回路を構築するとcrazyflie 2 .それに付随します。< br />この製品であることを意図して一緒に使用crazyflie 2 .ナノquadcopterと

More information in English:

Introduction:

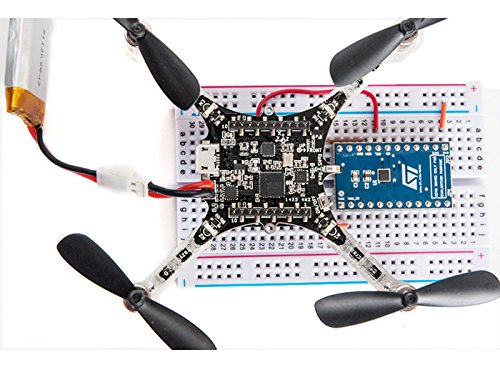

Test new hardware easily without soldering by using the breakout expansion board. Just build the curcuit on a breadboard and attach the Crazyflie 2.0 to it.
This product is intended to be used together with the Crazyflie 2.0 nano quadcopter and uses it's expansion board system. Please have a look at the buyers guide for more info about Crazyflie 2.0 expansion boards.
Features:

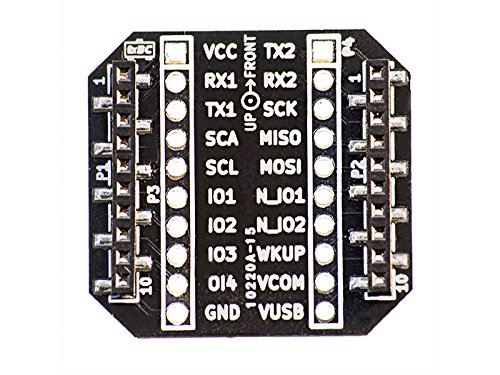

All expansion connector pins broken out with screen print for easy usage
Has SOT-23 footprint for 1-wire memory used for automatic detection (not mounted)
Specification:
Makes all 20 pins in the Crazyflie 2.0 expansion port available

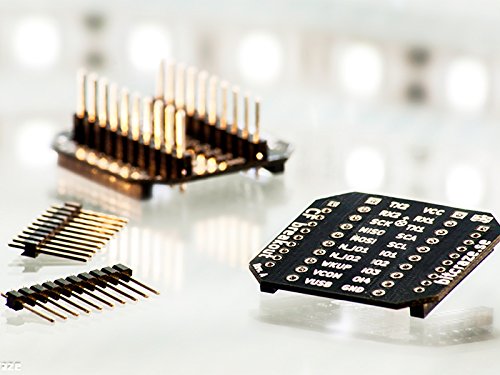

2.54mm header that fits a breadboard (not included)

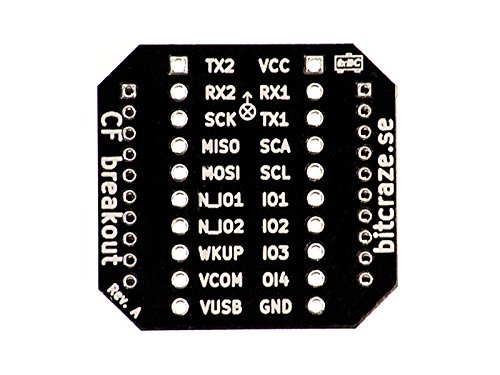

Screenprint showing all signal names
Footprint for optional 1-wire memory (not mounted)
Mechanical specification:
Weight: 1.5 g
Size (WxHxD): 27x28x4mm
Package contents:
1 x Breakout expansion boar
Resources:
Bitcraze
Wiki
Forum
Buyers Guide
Support
If you have any further question for technical support, please contact support(at)bitcraze.se.
