seeedstudio－2 .気crazyflie誘導充電拡張ボード自作メーカーのおたくのオープンソースbooole

商品説明

、uusbケーブル接続なしであなたのcrazyflie 2 .を担当したいですか？そして、crazyflie 2 .気誘導充電拡張ボードは偉大なオプションです。それは気の標準をサポートして、あなたがあなたの電話またはタブレットのために同じ気の充電器を使用することができます。それは気

More information in English:

Introduction:

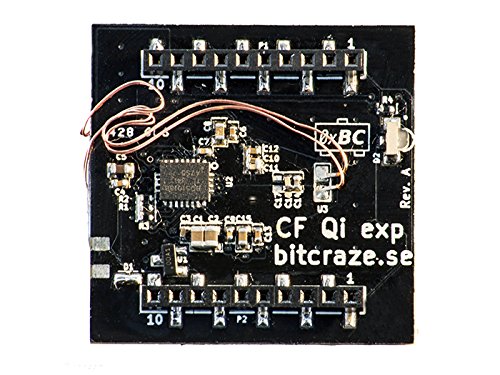

Want to charge your Crazyflie 2.0 without connecting the uUSB cable? Then the Crazyflie 2.0 Qi inductive charging expansion board is a great option. It supports the Qi standard and can be used with the same Qi charger you have for your phone or tablet. It also supports the latest WPC V1.1 specification and is able to supply up to 1A at 5V to the Crazyflie 2.0.
This product is intended to be used together with the Crazyflie 2.0 nano quadcopter and uses it's expansion board system. Please have a look at the buyers guide for more info about Crazyflie 2.0 expansion boards.
Features:
Compatible with the Qi standard
Automatic detection of expansion board using 1-wire memory
Specification:
Mechanical specification:
Designed for mounting under the Crazyflie 2.0
1-wire memory for automatic expansion board detection
Supports the Qi wireless charging standard (WPC V1.1)
Can supply up to 1A at 5V
Based on the TI BQ51013B
Weight: 5.0g
Size (WxHxD): 30x30x5mm
Package contents:
1 x Qi inductive charging expansion board
Resources:
Bitcraze
Wiki
Forum
Buyers guide
Support
If you have any further question for technical support, please contact support(at)bitcraze.se.
