seeedstudioスターター・シールドカチカチのはんだ付けのトリックの電子メーカーのオープンソースbooole diy

商品説明

スターターシールドの基本的な電子プロジェクトのために、最も一般的な資源を含みのボタンのように、センサ、ブザーと表示されます。あなたは、はんだ付け作業を完了した後に、それはなるおたくスタイルの目覚まし時計を自動表示の明るさを調整するの

More information in English:

Starter Shield is a perfect start for beginners of Arduino world. You can learn and practice basic soldering tricks and programming principles when tinkering with this kit. Electronic could be fun even if you have bare technical knowledge cause we get your back by preparing a detailed soldering guide and a fully supported library of programming examples from easy to difficult. Hope you have fun and gain some knowledge with this kit!

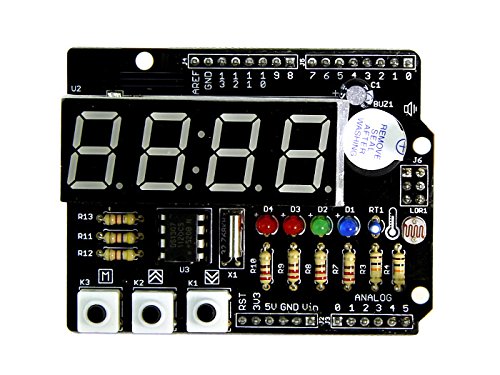

Starter Shield contains most common resources for a basic electronic project, like buttons, sensors, buzzer and display. After you're done with the soldering task, it turns out to be a geek style alarm clock which can auto adjust the brightness of display and keep in synch with real world time.
Features
All soldering friendly through-hole parts
Alarm clock in geek style
All-in-one platform for beginners
Arduino/Seeeduino compatible
Real time clock inside

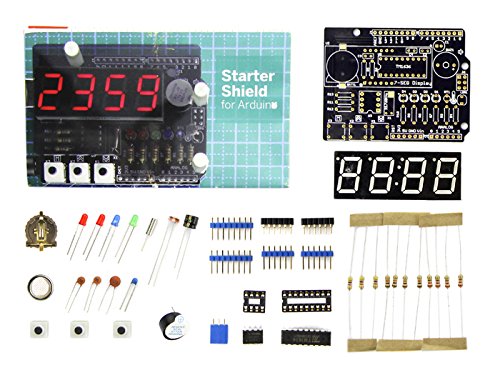

Parts List:
1x Buzzer 3V;
1x CAP Aluminum 100uF-16V;
1x Temperature Sensor-10k;
1x RES Photoresistor 10K;
4x RES 10K-5%-1/4W;
4x RES 220R-5%-1/4W;
3x RES 4.7K-5%-1/4W;
2x Blue Male Header VERT;
2x Blue Male Header VERT;
1x Blue Female Header VERT;
1x Lithium-ion Battery 3V-40mAh;
1x SMD Battery Cell Holder Plastic;
1x IC Driver;
1x RTC Clock/Timing;
2x IC Socket;
3x Button Top;
2x Black Round Female Header VERT;
1x LED Green-Green;
1x LED Blue-Blue;
2x LED Red-Red;
1x LED 7-SEG-Red;
1x Crystal 32.768KHz-12.5pF-20ppm-30K;
2x CAP Ceramic Disc 1nF-50V-20%;
1x CAP Ceramic Disc 100nF-25V;
1x Starter Shield Soldering Guide

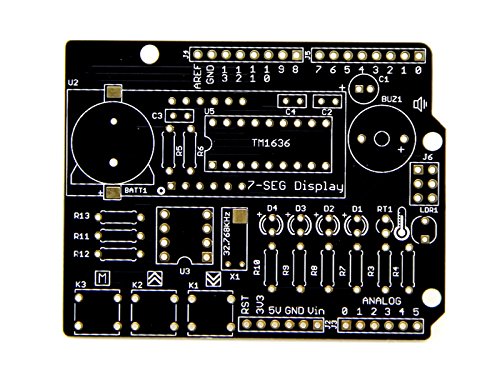

1x Starter Shield PCB
Soldering Guide
Documents
Please visit our wiki page for more info about this product. It will be apprec
