seeedstudio果樹園のシリアルのmp 3プレーヤーメーカーのオープンソースbooole diy

商品説明

木立ちのシリアルのmp 3プレーヤーのデザインが高品質のmp 3オーディオチップのwt5001に基づいて、単純なmp 3プレーヤー装置の一種である。それから周波数16ビット44 . mp 3やwavファイルフォーマットのサンプリングを支えることができます。この製品は、いくつかの周辺ポート：標準的なu

More information in English:

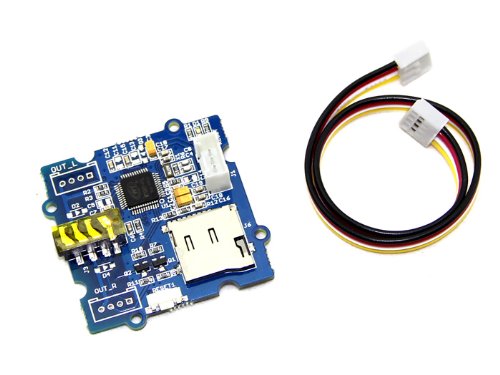

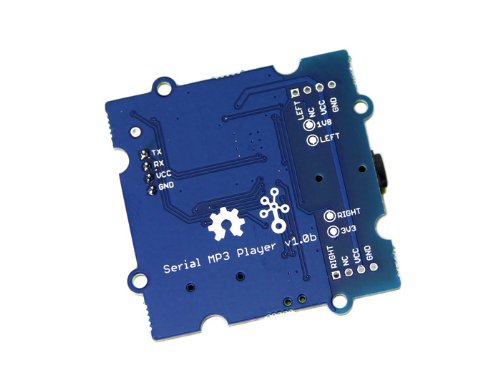

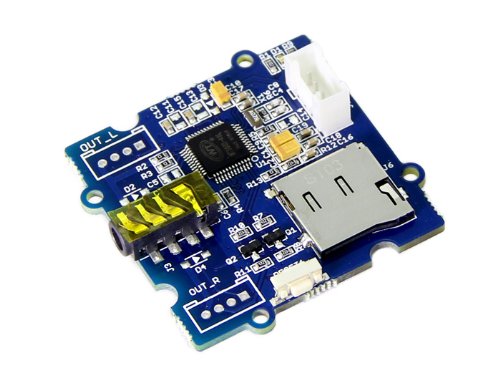

Grove-Serial MP3 Player is a kind of simple MP3 player device whose design is based on a high-quality MP3 audio chip---WT5001. It can support 8KHZ~44.1KHZ sampling frequency MP3 and WAV file formats. This product has several peripheral ports: a standard UART Grove interface, a dual track headphone jack, an external interface and also a micro SD card interface. You can control the MP3 playback state by sending commands to module via serial port tools, such as switch songs, change the volume and play mode and so on. It seems a simple module, but it owns such strong function. Want to know how the sound quality? Please come to experience it!
Features
Standard Grove interface
Asynchronous serial port control play mode
Busy Indicator
Reset Button
Standard micro SD card Interface
Support FAT16 and FAT32 file system
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to ourforum.
