商品説明

arduino dtmfやタッチトーン信号をマイコンという形式に変換するためのdtmfシールド（uc）またはarduinoボードを理解することができます。arduino dtmf音とほとんど読むことができないuc直接アナログ信号である。このモジュールは、これらの信号

More information in English:

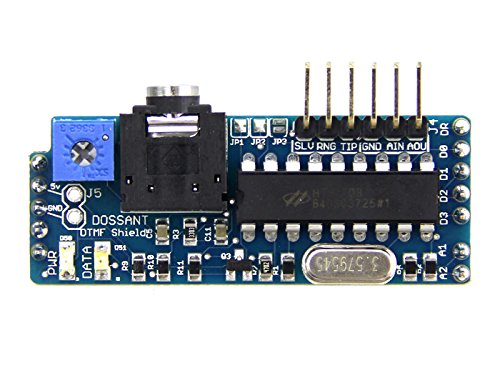

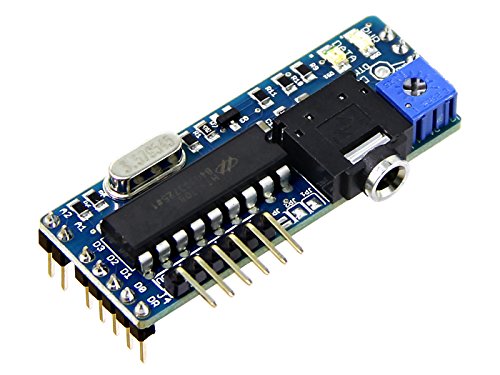

The DTMF Shield for Arduino converts DTMF or Touch Tone signals into a format that microcontrollers (uC) or Arduino boards can understand. DTMF tones are analog signals that Arduino and most uC cannot read directly. This module converts those signals into a digital format that uC can easily read.
Here is the functional diagram of the DTMF Shield.
The DTMF Module is specifically designed to plug right into the Arduino boards, but it can also be used with a variety of microcontrollers.
Demo of DTMF Shield for Arduino
See other demo videos here.
Note: some these videos show an earlier board version with no Arduino headers. The formal version of sale has headers to right into an Arduino board
Features
Operating Voltage: 5v, Current draw: 3mA
Input signal range: 27.5 to 869mVrms (-29 to 1dBm )
Trim pot for easy gain adjustment.
3.5mm stereo audio jack (TRS) and 0.1″ standard interface headers
LED to indicate tone decoded
Specification

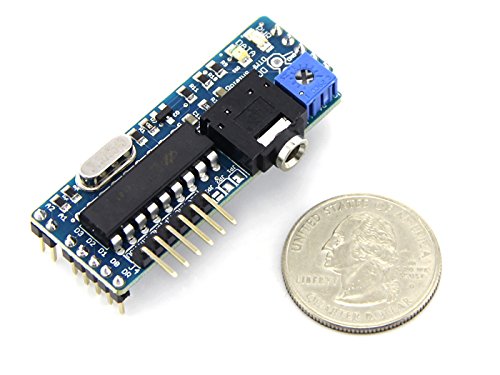

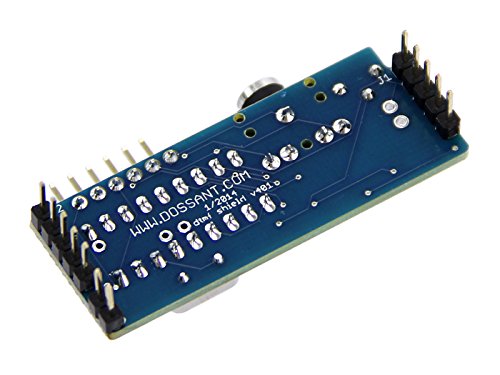

Dimension: 0.79″ x 2.16″, 20mm x 55mm
Documents
DTMF Shield User Manual
Library and Sample Sketch: download
DTMF Module Schematics
Datasheet for Holtek HT9170B DTMF decoder IC
Demo videos
If you encounter any problems when using this product, please contact here for technical support or visit forum of dossant.
