seeedstudioオーディオアンプモジュール40メーカーdiyのオープンソースbooole

メーカー
SeeedStudio
ブランド
Seeedstudio
JAN
0752128136177
メーカー希望小売価格
¥2,851
シェア

商品説明

、8オームのスピーカーに2x40wを届けることに感謝する、高効率へと露出したパッドをパッケージのみの簡単な放熱板が必要である。それはマルチメディアプレーヤーのために設計されることができ、d

More information in English:

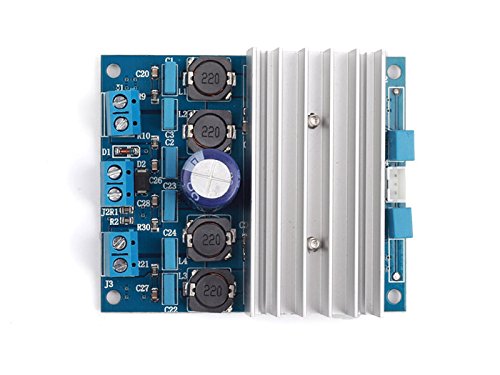

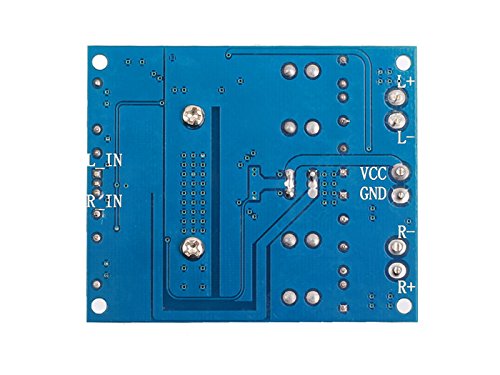

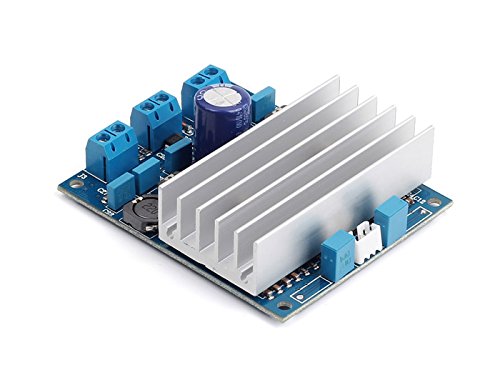

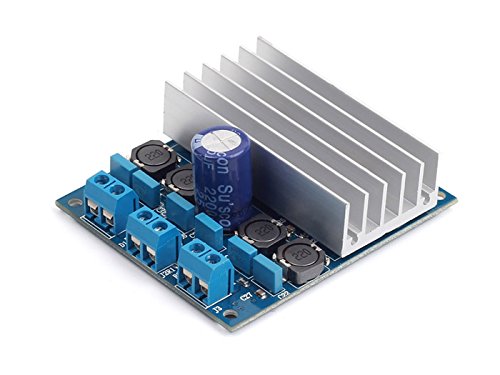

This is a dual BTL class-D audio amplifier with single power supply, able to deliver up to 2x40w into 8 ohm speakers, thanks to the high efficiency and exposed-pad-up package only a simple heatsink is required . It can be designed for multimedia player, desktop amplifier, multi channel amp, frequency electronic subwoofer amp etc.
Features:
Audio output (L/R)
Audio input interface (L/R)
Power interface
Specification:
SNR 90(db)
DR 0.01%
Input impedance@ Voltage 4Ω@12V-18V, 6Ω@12V-24V,8Ω@12V-26V
size 72mm*60mm*32mm
50 W + 50 W continuous output power at THD = 10% with RL = 6 Ω and VCC = 25 V
40 W + 40 W continuous output power at
THD = 10% with RL = 8 Ω and VCC = 25 V
Wide-range single-supply operation (8 - 26 V)
High efficiency (η = 90%)
Four selectable, fixed gain settings of nominally 21.6dB, 27.6dB, 31.1 dB and 33.6dB
Differential inputs minimize common-mode noise
Standby and mute features
Short-circuit protection
Thermal overload protection
Externally synchronizable
ECOPACK®, environmentally-friendly package
Technology support:[email protected]
For any technical support or suggestion, please kindly go to our forum.

特記事項

  • 音声出力(l/r)。音声入力インタフェース(l/r)。パワー・インターフェース。snr 90(db)。dr . 01。入力インピーダンス電圧4Ωさん12v-18vさん、おはよう12v-24v 6Ω、8Ωさん12v-26v。サイズ72 mm×60 mm×32 mmである。thd=rl=6Ωと
  • vcc=25 . 40 wの連続出力40 wのパワーで10 %で50 w 50 wの連続出力電力。thd=10 rl=8Ωとvcc=25 vの広い範囲の単一電源動作(8-26 v)。高効率(η=90)。4つの選択可能な、21.6dbの名目上、固定ゲインの設定27.6db 31 . 1 dbと33.6db。
  • 差動入力コモンモードノイズを最小にします。スタンバイとミュートを特徴とします。短絡回路保護。熱的過負荷保護。外部同期可能。エコパック?、環境調和型パッケージ。技術支援:電子メールの保護された。
